What if the drawings that secured planning permission still weren’t enough to guide the build? It’s an easy distinction to miss. Technical construction drawings develop an approved or agreed design into coordinated information for the work on site. Planning plans show a proposal for assessment; construction drawings answer different questions at a later stage.
If you’re unsure which documents your project needs, you’re not alone. Unclear or incomplete information can leave details unresolved, creating avoidable queries and rework. The right drawings help clarify what’s being built, how key elements fit together and what information is needed for Building Control. Planning permission and Building Regulations approval are separate processes, and one doesn’t automatically provide the documentation required for the other.
This guide explains what technical construction drawings can show, how they differ from planning plans and what a residential drawing package may contain. You’ll also see how bespoke CAD documentation can support a joined-up design process, from planning through to construction. With a clearer picture of each stage, you can review your project’s documentation and next steps with greater confidence.
Key Takeaways
- See how technical construction drawings translate a residential design into coordinated information for the work on site.
- Understand why drawing packages vary by project, with each drawing addressing a different spatial, technical or coordination need.
- Distinguish planning drawings from construction information and Building Regulations documentation, so you can recognise the purpose of each.
- Use a clear review sequence to check scope, consistency, drawing references and revisions before work begins.
- Discover how bespoke CAD drafting, planning support and Building Control work can fit into a joined-up design process for your home.
What are technical construction drawings, and what problem do they solve?
Technical construction drawings are coordinated documents that communicate how a proposed residential design is intended to be built. They take a design beyond its overall appearance, setting out information that helps the homeowner, design team and construction professionals understand the work consistently.
This shared understanding matters at junctions and transitions. For example, where a new extension meets an existing house, the drawings may need to show how the two parts connect and identify relevant materials or construction details. If the information is unclear, people may interpret the design differently, leading to questions or decisions being made on site.
Technical drawings differ from an illustrative sketch, marketing visual or early design concept. Those can help communicate an idea or explore how a home might look, but may not include the dimensions, notes and coordinated details needed to guide construction or support an approval process. For a general introduction to drawing conventions, see What are technical drawings?
There’s no single package that suits every home project. The drawings required depend on the scope of work, the design stage and the information needed for relevant approvals. An extension may call for different documentation from a new build, and early design drawings will usually answer different questions from a developed technical set.
What information makes a drawing technical?
Precision comes from more than a detailed image. Scale shows how a drawing relates to the proposed work; dimensions communicate sizes and positions; annotations explain specific elements; and drawing references show how sheets relate to one another. Depending on the project, drawings may also identify materials, construction details and interfaces between new and existing parts of the home.
Read the drawings as a coordinated set, not as isolated images. A plan, elevation or detail may each show a different aspect of the same design. Together, they give a clearer picture of how spaces, components and decisions fit.
Who uses residential construction drawings?
Homeowners use drawings to understand the proposed work, review design decisions and raise questions before work begins. Designers use them to communicate and coordinate the design. Construction professionals refer to the information when planning and carrying out their part of the project.
Building Control reviewers may also need project information to assess relevant requirements. The documents needed depend on the proposed work and the applicable approval process, so a drawing package should be developed for its specific purpose. Clear, project-specific CAD documentation helps keep these discussions grounded in the same design information.
Which technical construction drawings may a residential project include?
There’s no universal drawing checklist for a home project. The right set depends on the scope, design stage and information needed for coordination or approvals. An extension, for example, may need drawings that explain how the new work relates to the existing house, while a new build raises different spatial and technical questions.

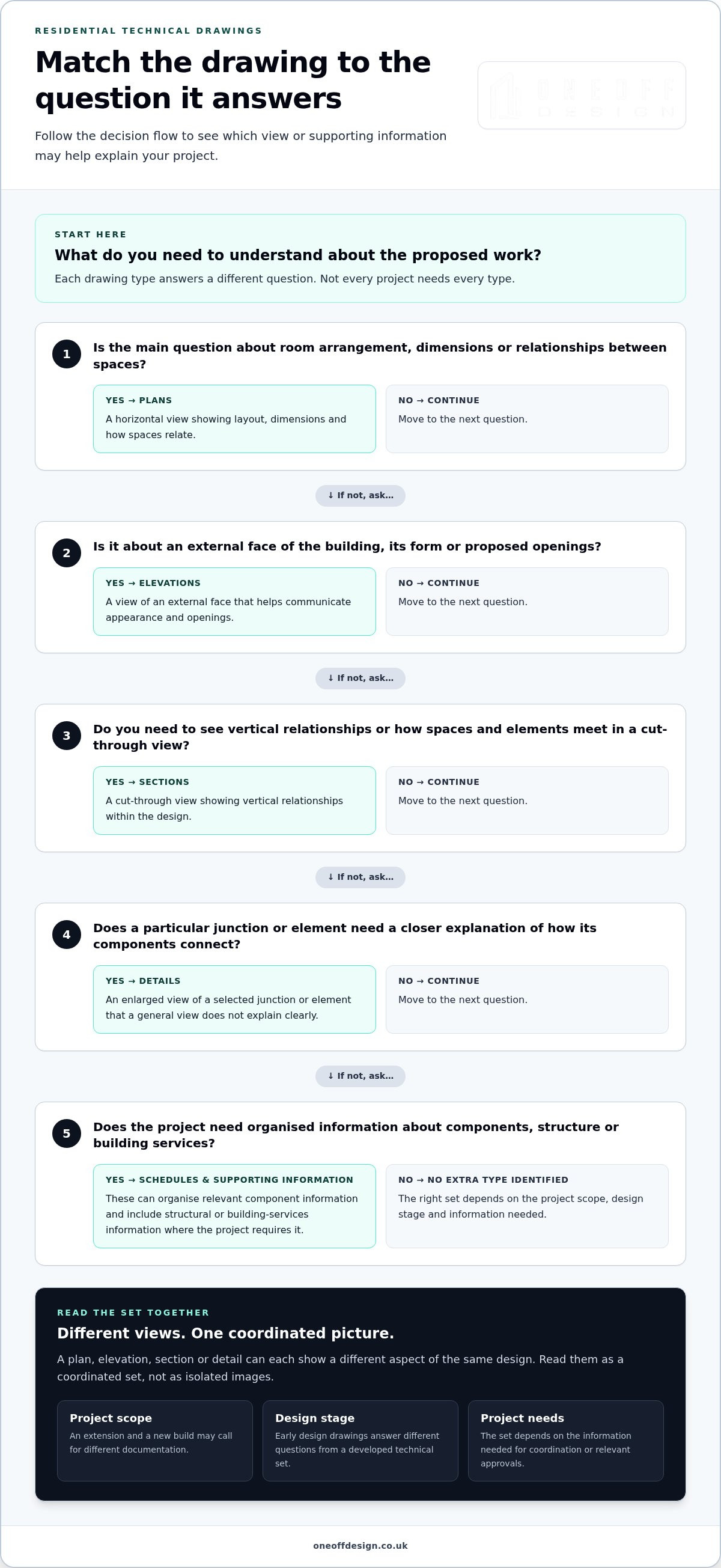

Each drawing has a distinct purpose. Plans explain layout; elevations show external appearance; sections reveal what a cut-through view can’t. The RIBA Plan of Work sets out project stages, including technical design. In practice, the drawing set develops as design decisions progress and project requirements become clearer.
Plans, elevations and sections: how they work together
A plan is a horizontal view through a building, showing room arrangement and spatial relationships. An elevation looks at an external face, helping communicate the building’s form and openings. A section cuts through the design to show how spaces and elements relate vertically. These views complement one another: each answers a different question rather than repeating the same information.
Details, schedules and supporting information
Closer views may be needed where a particular junction or construction element needs more explanation. Schedules can organise information about selected project components where relevant. Structural or building-services information may also form part of the wider coordinated documentation when the project requires it.
Common drawing types include:
- Plans: show layouts, dimensions and relationships between spaces, helping you understand how the home is arranged.
- Elevations: show external faces and proposed openings, helping you review the building’s appearance and external changes.
- Sections: show a cut-through view, helping you understand vertical relationships and how parts of the design meet.
- Details: enlarge selected junctions or elements when a general view doesn’t explain how components connect.
- Schedules and supporting information: organise relevant component, structural or building-services information where the project scope calls for it.
These are examples, not a fixed package. Not every home project needs every drawing type, and a drawing’s value depends on how it relates to the rest of the set. Bespoke technical construction drawings connect the views and supporting information to the specific design, rather than relying on a generic template. For homeowners developing an extension or new build, residential CAD drafting can form part of that coordinated design process.
Technical drawings vs planning and Building Regulations drawings: what is the difference?
These drawing types serve different purposes, even when some information appears in more than one set. Planning drawings explain a proposal. Building Regulations information supports a technical compliance review. Technical construction drawings develop the design into coordinated information for project delivery. The RIBA Plan of Work places technical design within the wider project process, showing why construction information develops beyond an initial planning submission.
| Drawing or information type | Purpose and typical information | Project use |
|---|---|---|
| Planning drawings | Communicate the proposal, which may include site context, proposed layouts and external appearance. | Prepared to support a planning application where required. They show the proposal for consideration, not necessarily every construction detail. |
| Building Regulations information | Sets out relevant technical information for assessing how the proposed work addresses applicable Building Regulations requirements. | Used for the relevant Building Control process. The information needed depends on the project and route. |
| Technical construction drawings | Coordinate design information, dimensions, materials and relevant construction details. | Developed to help communicate how the design is intended to be delivered. |
Planning drawings: showing the proposal
Planning drawings explain what is proposed and how it relates to its surroundings. A submission might include a site plan, proposed floor plans and elevations showing external changes. The drawings and other documents required depend on the proposal and the relevant local authority. For wider context, see this Building Control compliance guide.
Building Regulations and construction information
Building Regulations documentation addresses technical matters relevant to the work and supports a compliance review. It isn’t automatically a complete set of construction instructions. Technical information may develop further to coordinate design decisions and explain how elements relate on site. The required scope and terminology can vary with the approval process and project location. Building Regulations arrangements differ across the UK, so guidance should reflect the jurisdiction where the home is located.
The distinction is practical: planning drawings communicate the proposal; compliance information addresses relevant regulatory considerations; technical construction drawings coordinate information for delivery. Some content may overlap, but one set shouldn’t be assumed to fulfil every purpose. A project-specific drawing package brings the relevant information together at the appropriate stage.
How do you review technical construction drawings before work begins?
A careful review isn’t about proving that every technical or regulatory decision is correct. It’s about confirming that the documents reflect the agreed project, spotting unclear information and raising questions with the design team before work progresses. Use a simple sequence to keep the review focused.
A homeowner’s drawing review checklist
- Confirm the scope. Check that the proposed work reflects the design you’ve agreed, including the areas being altered or added.
- Check the drawing set. Look for clear titles, project details and revision references. Check that room names, dimensions and drawing references are consistent across related sheets.
- Read connected information together. Consider layouts alongside relevant details and schedules. A plan may show where an element sits, while another drawing or note explains it further.
- Record questions. Note anything unclear or inconsistent, then raise it with the design team for resolution. You’re reviewing the clarity of the information, not certifying structural design or Building Regulations compliance yourself.
Make questions specific. Identify the drawing title and revision, then describe the location or detail you’re asking about. That gives the team a clear reference point and makes the response easier to record.
Coordination, revisions and site questions
Drawings work as a set. If a layout changes, related elevations, sections or details may also need updating. Checking how sheets relate can reveal inconsistencies, such as a dimension that differs between a plan and a detail. Flag discrepancies rather than deciding which drawing takes priority yourself.
Revision references help the project team identify the current agreed information and distinguish it from earlier versions. If a design change is agreed, the affected drawings should be reviewed and the revision recorded so people aren’t relying on different versions. Clear, coordinated information can reduce conflicting interpretations and avoidable site queries, although it can’t remove every question that may arise during a project.
Use the review to confirm the scope, check consistency, resolve questions and record agreed changes. Leave specialist compliance and structural checks to the relevant professionals. For project-specific CAD documentation and design coordination, discuss your residential drawing requirements with Oneoff Design.
How Oneoff Design develops technical construction drawings for homes
Good documentation starts with understanding the home and the brief. Oneoff Design works collaboratively with homeowners to develop a residential design around the project’s requirements, then prepares bespoke CAD drawings and technical information for the project’s scope and stage. The result is documentation shaped around the design, not a generic set applied to every project.
From agreed design to coordinated documentation
As design decisions take shape, the drawing information develops with them. Layouts, dimensions and relevant details need to communicate the same proposal across the set. When a decision changes, related information can be reviewed to keep the documentation coordinated.
The level of detail depends on the project and the next steps it needs to support. Planning drawings communicate a proposal; technical construction drawings develop information for coordinated project delivery. Oneoff Design’s CAD drafting and planning support connect these stages, while its Building Control work addresses compliance information relevant to the residential project.
A joined-up route through design and compliance
For an extension or new build, design, documentation and compliance are connected parts of the process. Oneoff Design brings residential architectural design, CAD documentation and Building Control compliance together, helping homeowners understand how project information develops. Project oversight can also support continuity as decisions move from design development towards delivery, while keeping design coordination distinct from physical construction.
Oneoff Design works on residential projects in London, Cambridge and the wider UK. Documentation is tailored to each project, and local planning or regulatory requirements can vary by location. A coordinated approach helps keep design information clear while those project-specific considerations are addressed.
If you’re considering an extension or new build, take the next step by discussing your residential project with Oneoff Design.
Move your home project forward with clear documentation
The right drawing package depends on your project and its stage. Planning drawings communicate the proposal, Building Regulations information supports compliance review, and technical construction drawings develop coordinated information for delivery. Clear titles, consistent revisions and project-specific details help everyone work from a shared understanding.
You don’t need to assess structural design or regulatory compliance yourself. Focus on whether the drawings reflect the agreed scope, whether related information appears consistent and whether questions have been resolved before work progresses.
Oneoff Design brings residential architectural design and CAD drafting together with planning support, Building Control compliance and project oversight. That joined-up approach connects design decisions with the documentation needed as your project develops.
Ready to explore the next step for your extension or new build? Discuss your residential project with Oneoff Design. Clear information and a considered design process can help you move forward with confidence.
